360 Degree Spring Lever Lift Table

Automation Equipment
Rated Load
500kg/1000kg/2000kg
Table Size
φ1110mm
Base Size
915*934mm

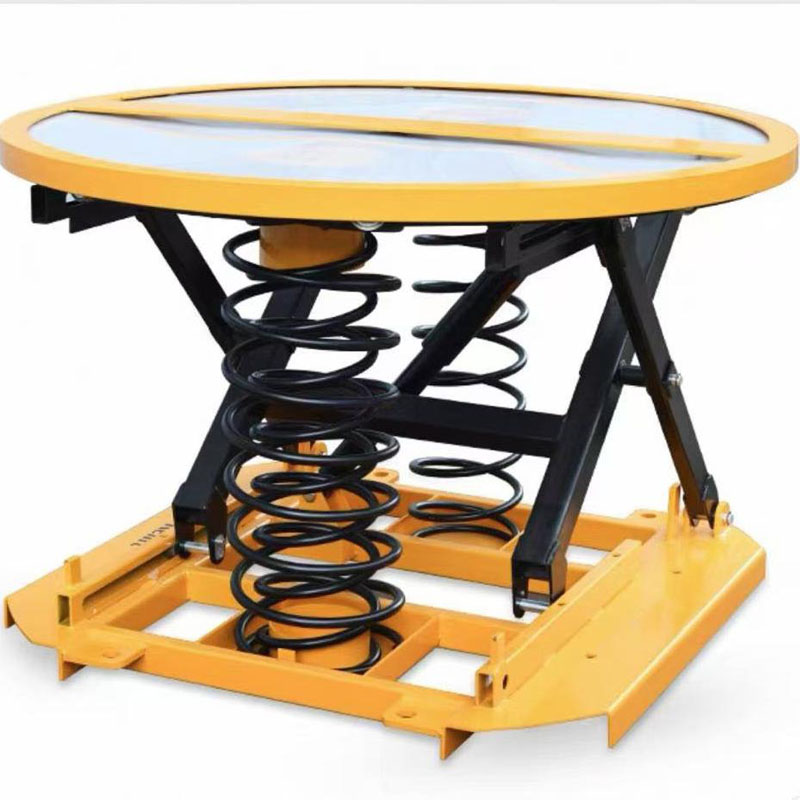

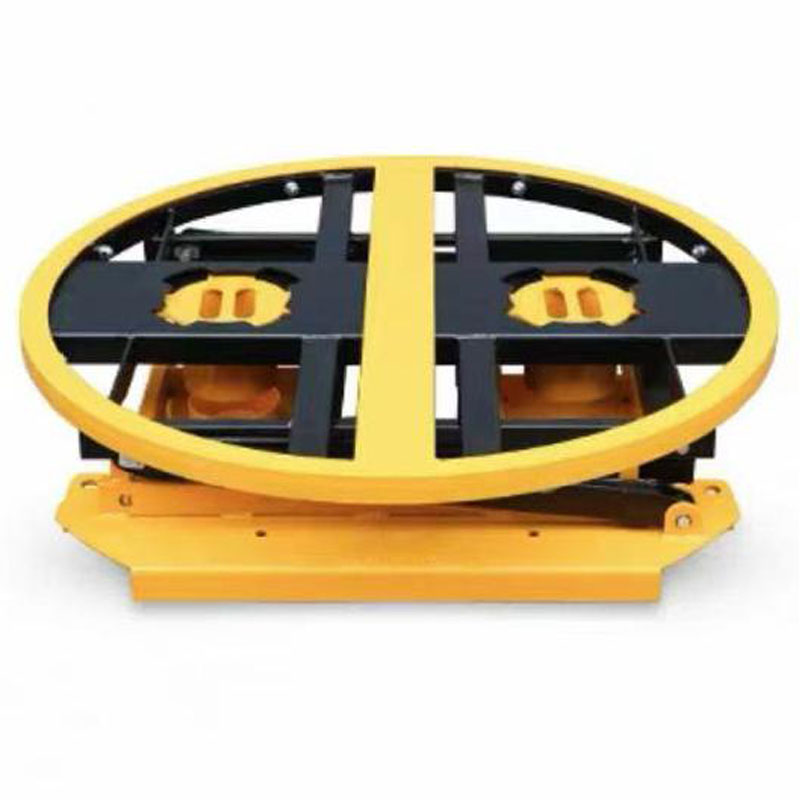

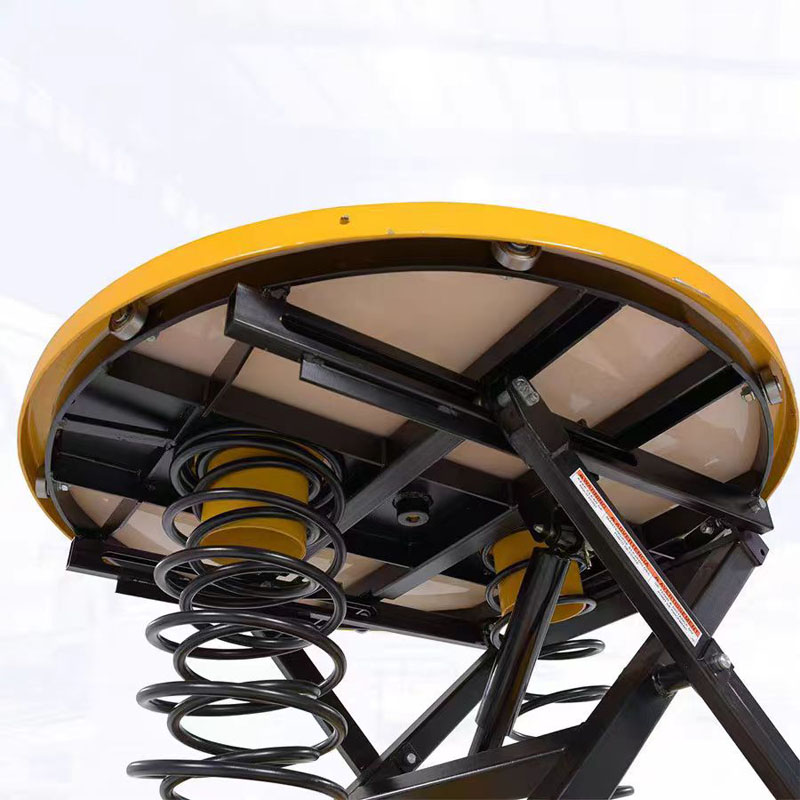

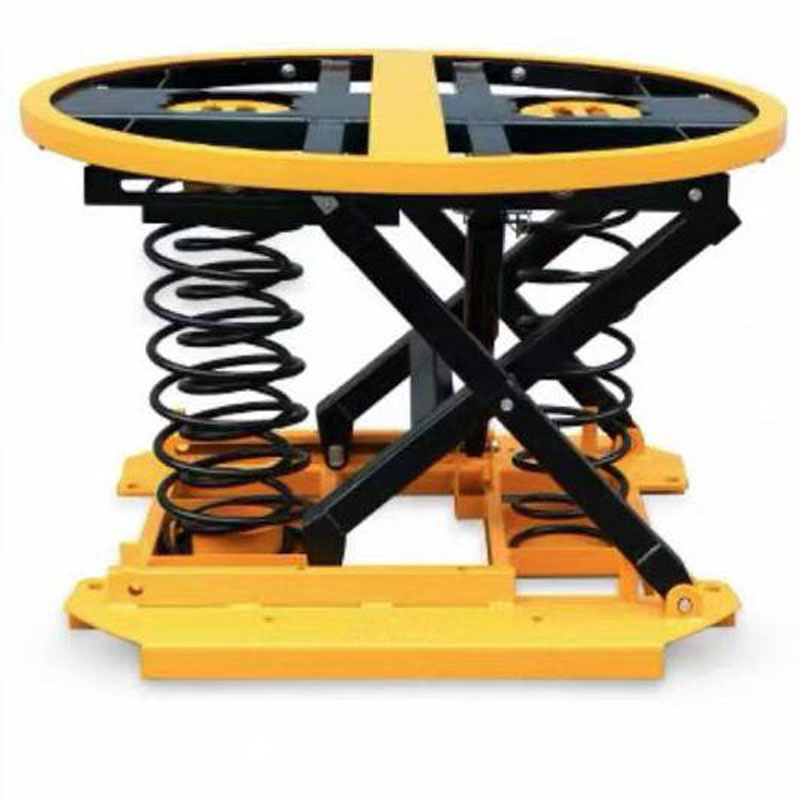

360 Degree Spring Lever Lift Table


Features
+ Expand All - Collapse All

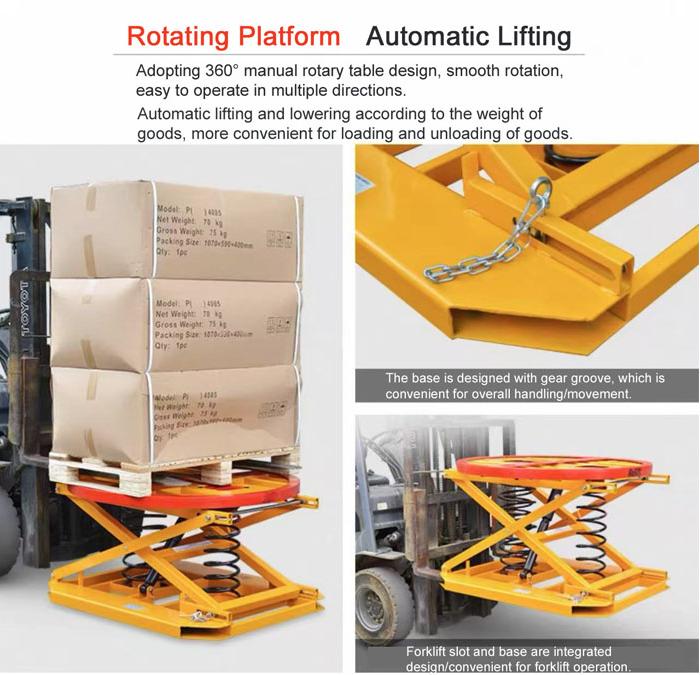

The platform can rotate 360 degrees, providing full accessibility to different angles and making it ideal for tasks that require precise positioning.
Powered by a spring mechanism, this lift platform offers smooth, efficient lifting without the need for electrical power, making it energy-efficient and easy to operate.
Compact and versatile design allows it to be used in a variety of environments, such as warehouses, workshops, and factories, maximizing space efficiency.
Equipped with secure locking systems and a sturdy base, ensuring the platform remains stable and safe during rotation and lifting, even under heavy loads.


Parameters
Brochure
Rated Load
500kg/1000kg/2000kg
Table Size
φ1110mm
Base Size
915*934mm
Static Table Height
240mm
Table Lifting Height
705mm
Note
Non-standard size can be customized according to the needs of the optional 304 stainless steel material production
