Tray Type

Food Elevator
Electric Food Lift

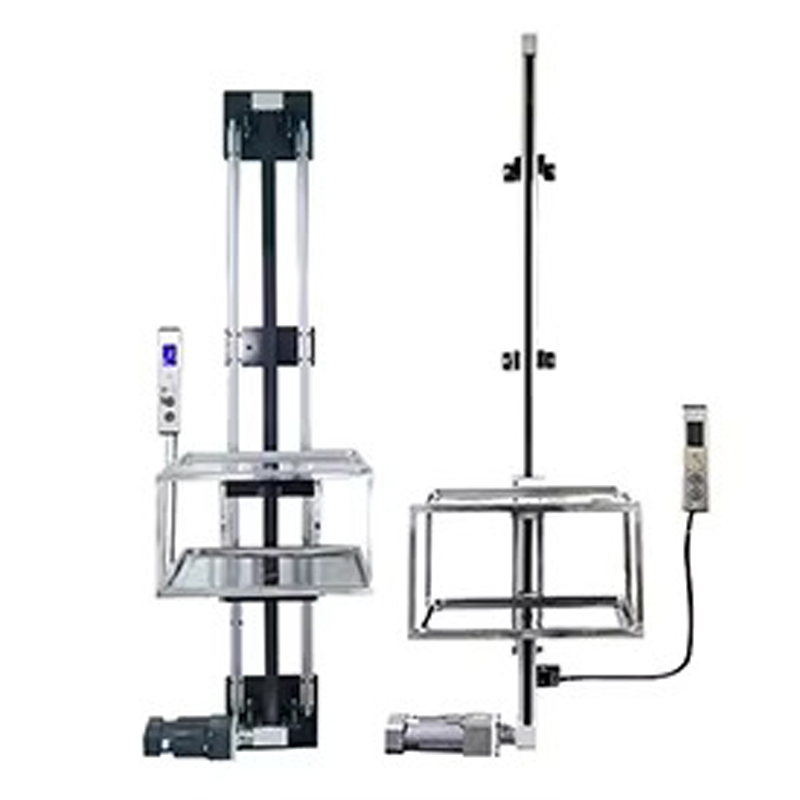

Single Track/Double Track
Lifting Height
2-8m
Track Length
3-9m


Tray Type


Features
+ Expand All - Collapse All

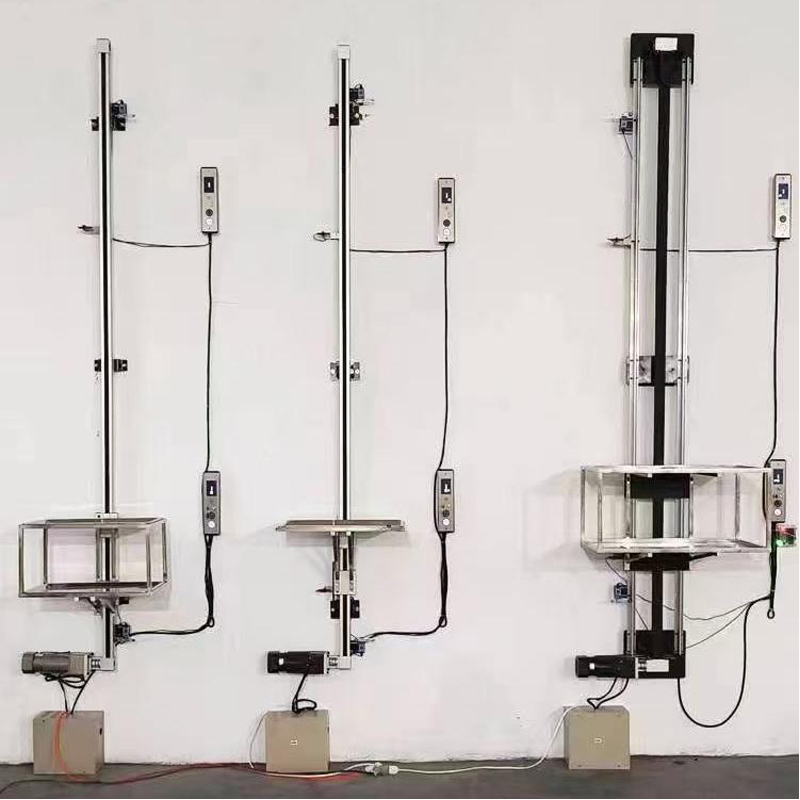

Available in single-track and double-track designs to meet different space and load requirements — single-track for compact kitchens, and double-track for heavy-duty use in hotels or large restaurants.
Adopts precision guide rails, noise-reduction motor, and safety interlock system to ensure stable, silent, and secure lifting of food and tableware.
Supports various cabin sizes, door openings (through or opposite), and multiple floor stops to suit different architectural layouts.
Made of high-quality stainless steel with a clean, corrosion-resistant surface, ensuring long service life and compliance with food hygiene standards.


Parameters
Brochure
Electric Food Lift
Single Track/Double Track
Lifting Height
2-8m
Track Length
3-9m
Load Capacity
50kg/75kg
Stop Quantity
2 Stops
Pallet size
60*40*30cm
Pallet Material
304 Stainless
Motor power
250W -400W
Standard voltage
220V 50hz
Speed
Various speed, can be adjusted
Control
Control panel
Hole size
Based on pallet size,【lift and right】+100mm, 【front and back 】+200mm
Packing
Wooden case (especially for export)
Note
Ultra-quiet, variable frequency motor


FAQ
+ Expand All - Collapse All
Single track is space-saving for light loads, while double track offers higher stability and capacity.
Standard capacities are 50kg,75kg,customizable on request.
No. The lift runs smoothly and quietly with a servo motor system.
