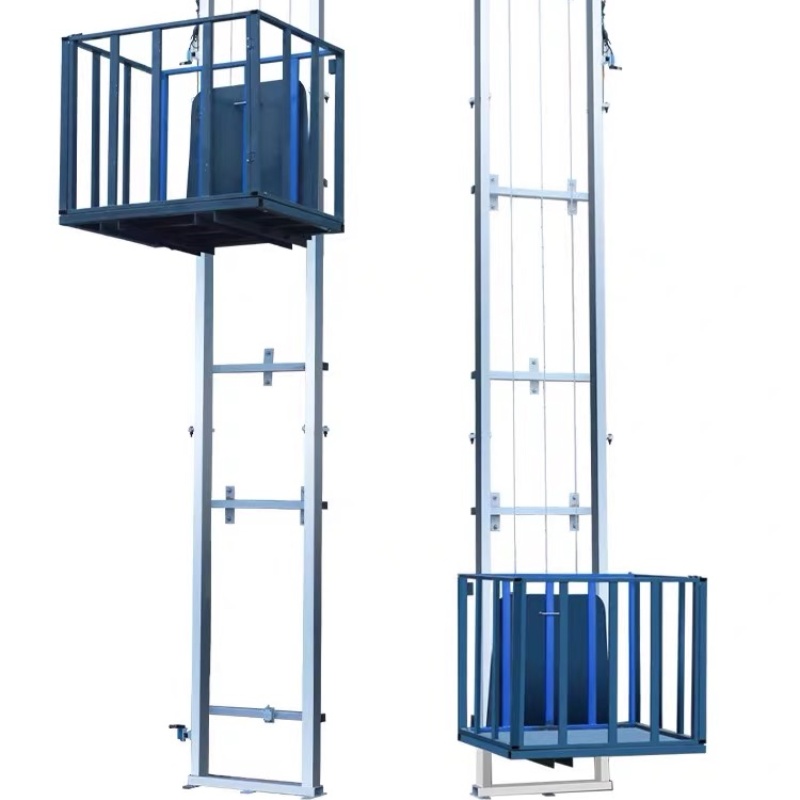

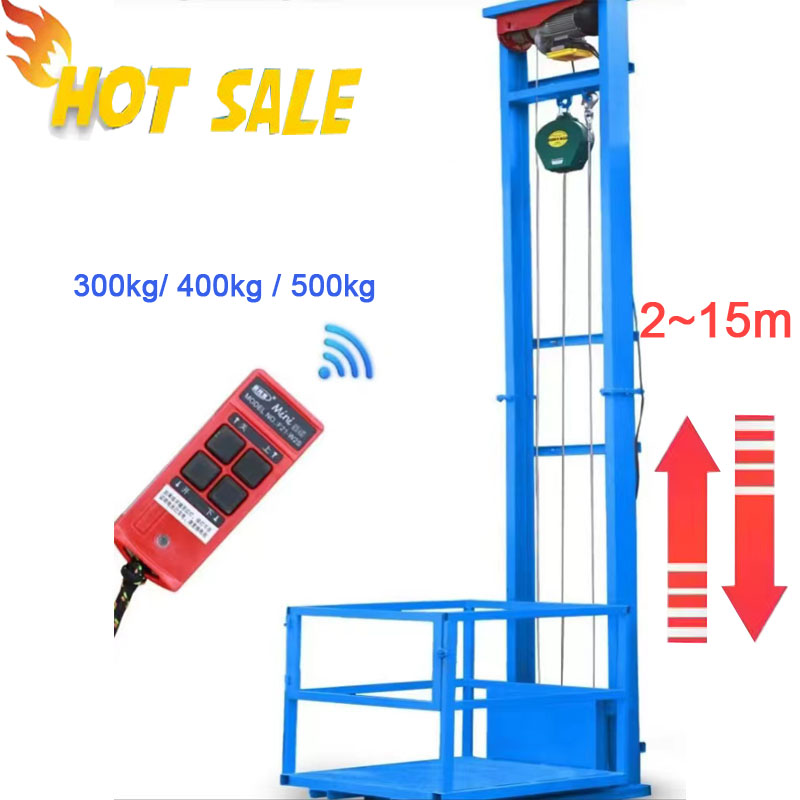

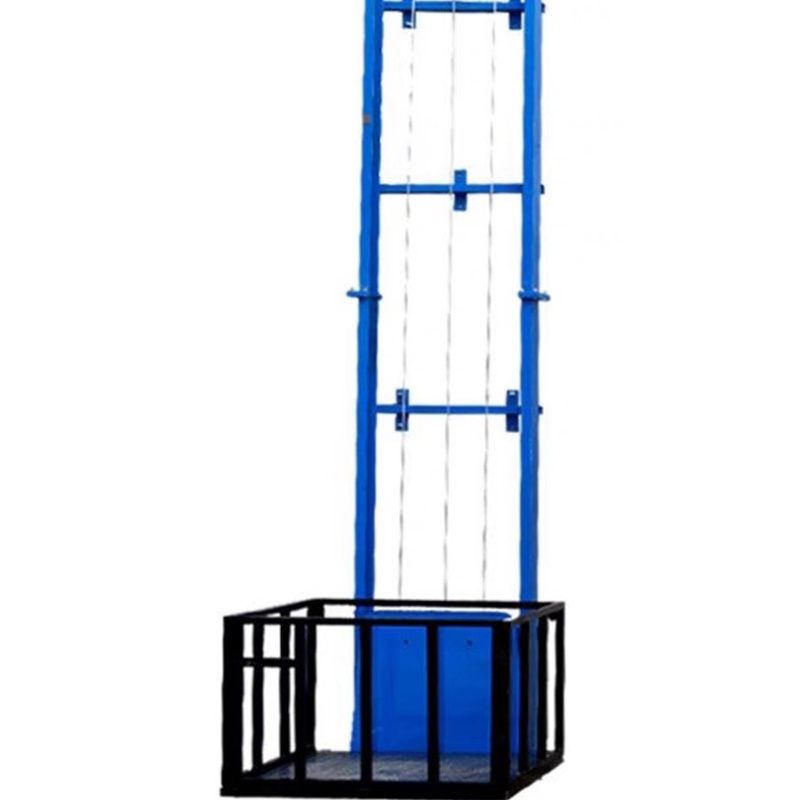

Electric Cargo Lift

Cargo Lift

Lifting Capacity

300kg/500kg

Lifting Height

2-15m

Platform Size

1.0*1.0m

Request a Quote Brochure

Electric Cargo Lift

Features

Parameters

Request a Quote

Brochure

Features

+ Expand All - Collapse All

Smooth Electric Lifting System

+ -

Driven by an electric motor and steel wire rope system for stable, efficient, and energy-saving lifting performance.

Compact Structure & Easy Installation

+ -

Requires no pit foundation, suitable for installation in warehouses, workshops, or mezzanine floors.

Safe Operation & Easy Control

+ -

Equipped with limit switches, emergency stop, and control panels at each floor for convenient operation.

Customizable Platform Size

+ -

Platform dimensions, lifting height, and load capacity can be tailored to customer requirements.

Parameters

Brochure

Lifting Capacity

300kg/500kg

Lifting Height

2-15m

Platform Size

1.0*1.0m

Dimension

1*1.0*3.4-16.5m

Dead Weight

200-800kg

Material

4*6 steel pipe, 5mm thickness

Motor Size

PA800/PA1000

Control

Remote control

Wire Rope Diameter

6.2mm

Safety Protection

Upper and lower limiter, include falling protector

Packing

Wooden case (especially for export)

FAQ

+ Expand All - Collapse All

What is an electric cargo lift used for?

+ -

Electric cargo lifts are used for lifting goods between floors in warehouses, factories, and commercial buildings.

What load capacity can you provide?

+ -

Load capacity, lifting height, and platform size are customizable based on project requirements.

Is the electric cargo lift safe for daily operation?

+ -

Yes. It is equipped with safety locks, emergency stop, and overload protection.
