Hydraulic Cargo Lift

Cargo Lift

Platform Height

2-10m

Max. Lifting Capacity

500kg

Platform Size

1.0*1.0m

Request a Quote Brochure

Hydraulic Cargo Lift

Features

Parameters

Request a Quote

Brochure

Features

+ Expand All - Collapse All

Space-Saving Double-Guide Design

+ -

Adopts a two-post single-cylinder structure, providing stable lifting while occupying minimal installation space.

Strong Hydraulic Power System

+ -

Hydraulic cylinder ensures smooth and powerful lifting for loads up to several tons.

Reliable Safety Protection

+ -

Includes anti-drop device, overload protection, and safety valve to guarantee safe operation.

Easy Maintenance & Long Service Life

+ -

Hydraulic system with simple structure and low maintenance cost ensures long-term reliable performance.

Parameters

Brochure

Platform Height

2-10m

Max. Lifting Capacity

500kg

Platform Size

1.0*1.0m

Electrical Control Box

D/C class

Oil Cylinder

63mm

Standard voltage

220V 50hz

Control

Control panel

Safety Protection

Upper and lower limiter, include falling protector

Packing

Wooden case (especially for export)

FAQ

+ Expand All - Collapse All

Where is a double track single cylinder hydraulic cargo lift suitable?

+ -

Ideal for medium-load goods lifting in warehouses, workshops, and logistics facilities.

What are the advantages of a single hydraulic cylinder design?

+ -

It offers stable lifting, simple structure, and cost-effective performance.

Can the lift be customized for my site?

+ -

Yes. Lifting height, platform size, and load capacity can be customized.

Recommended View More >

Electric Cargo Lift

Inquiry Read More

Hydraulic Cargo Lift

Inquiry Read More

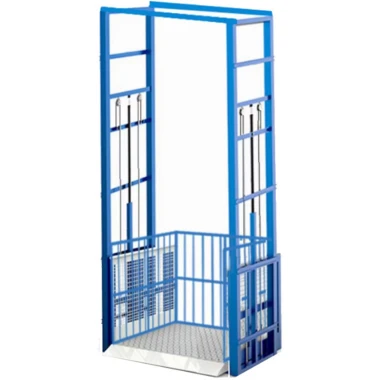

Four-rail Double-bar Hydraulic Cargo Lift
