Loading Material Lift

Slope Material Lift
Lifting Capacity
500kg/1000kg/2000kg
Track length
3-500m
Rail Channel Steel
3.5mm/4.5mm/5.5mm

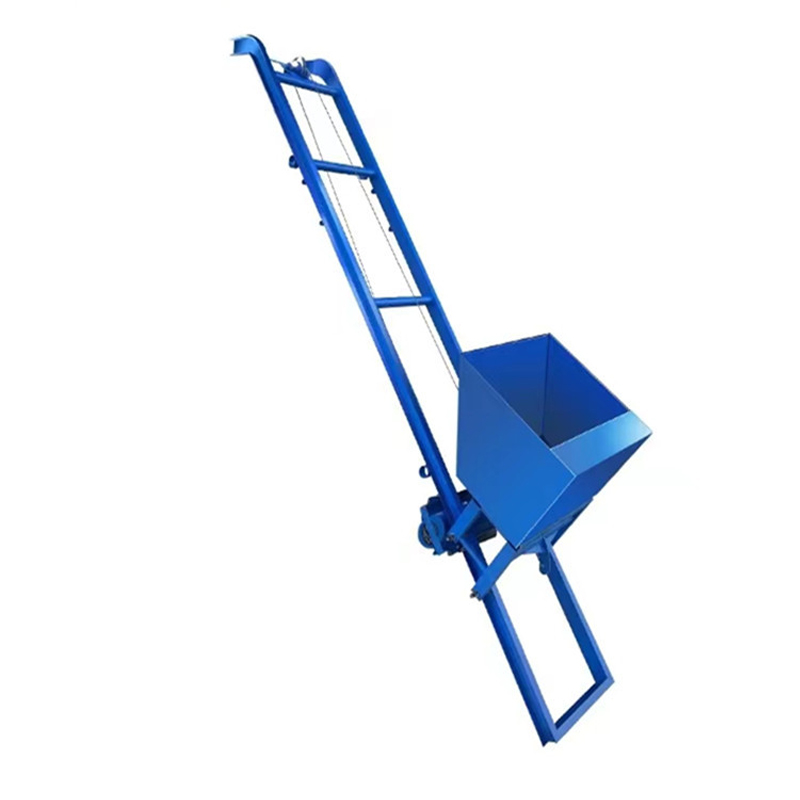

Loading Material Lift


Features
+ Expand All - Collapse All
Designed to lift materials with a load capacity of 500kg, 1000kg, or 2000kg, this lift is ideal for heavy-duty material handling in construction, warehouses, and industrial applications.
With a lifting height range of 3 meters to 500 meters, this lift is adaptable to various building heights, ensuring flexibility for different projects.
Equipped with a powerful motor and a stable lifting system, this lift ensures smooth, efficient, and reliable material transportation to any height without downtime.
Includes safety brakes, overload protection, limit switches, and emergency stop mechanisms, ensuring safe and secure operation during material handling at any height.


Parameters
Brochure
Lifting Capacity
500kg/1000kg/2000kg
Track length
3-500m
Rail Channel Steel
3.5mm/4.5mm/5.5mm
Track Size
3m/ section,51cm width, 80mm pipe
Bucket Capacity
0.3cbm/0.5cbm/1cbm
Wire Rope Dia.
8mm/10mm
Control
Remote control
Options
L type tray/ Flat type tray/ Bucket
Packing
Wooden case (especially for export)
