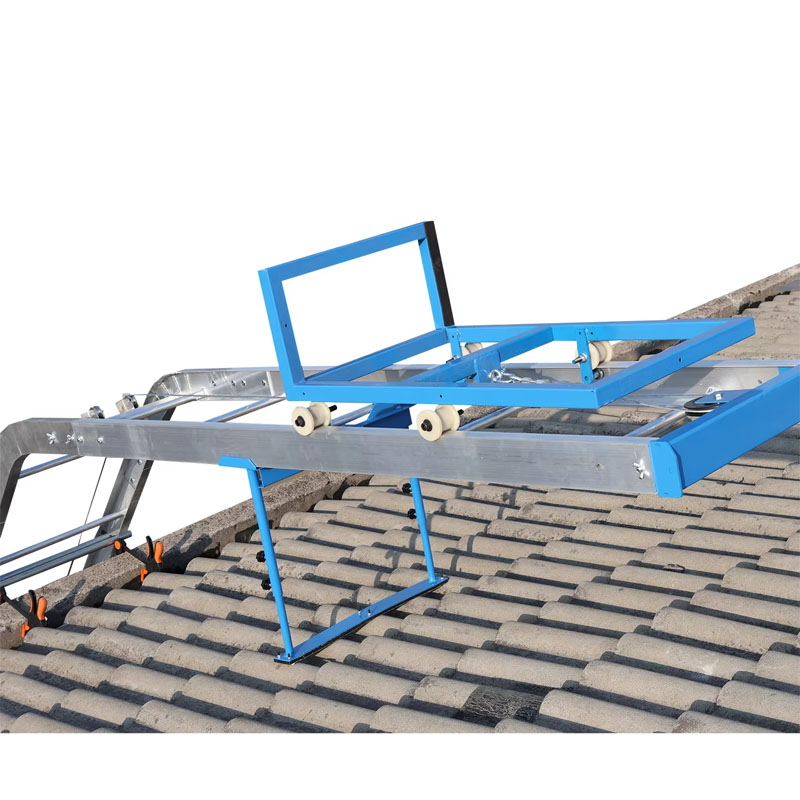

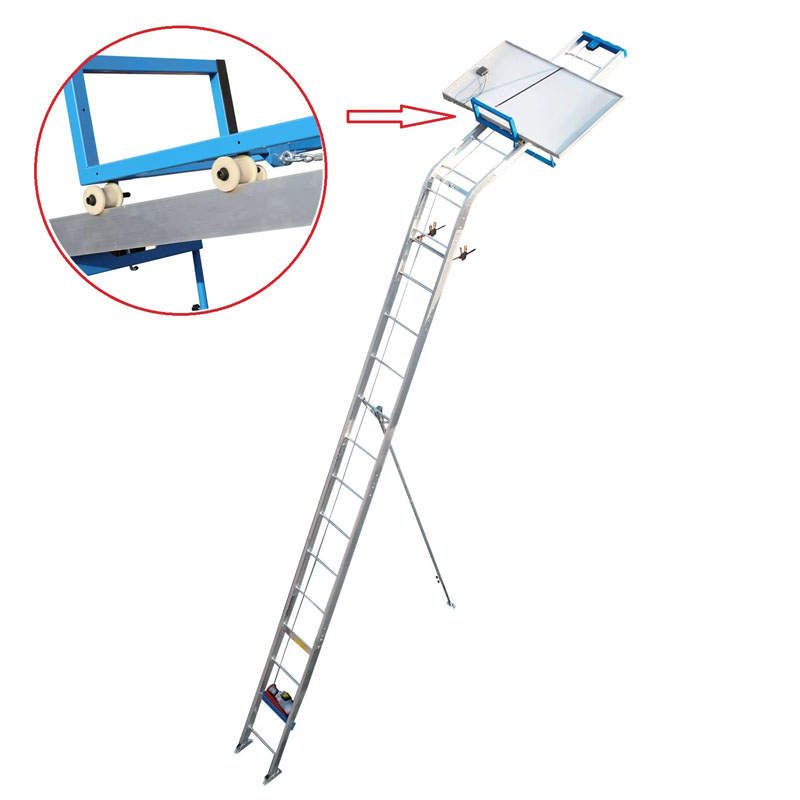

Roofing Ladder Lift

Ladder Lift
Track length
4-20m
Max. Load Capacity
200kg/150kg
Lifting Speed
12-16m/min
Request a Quote Brochure


Roofing Ladder Lift
Features
Parameters
Request a Quote
Brochure


Features
+ Expand All - Collapse All

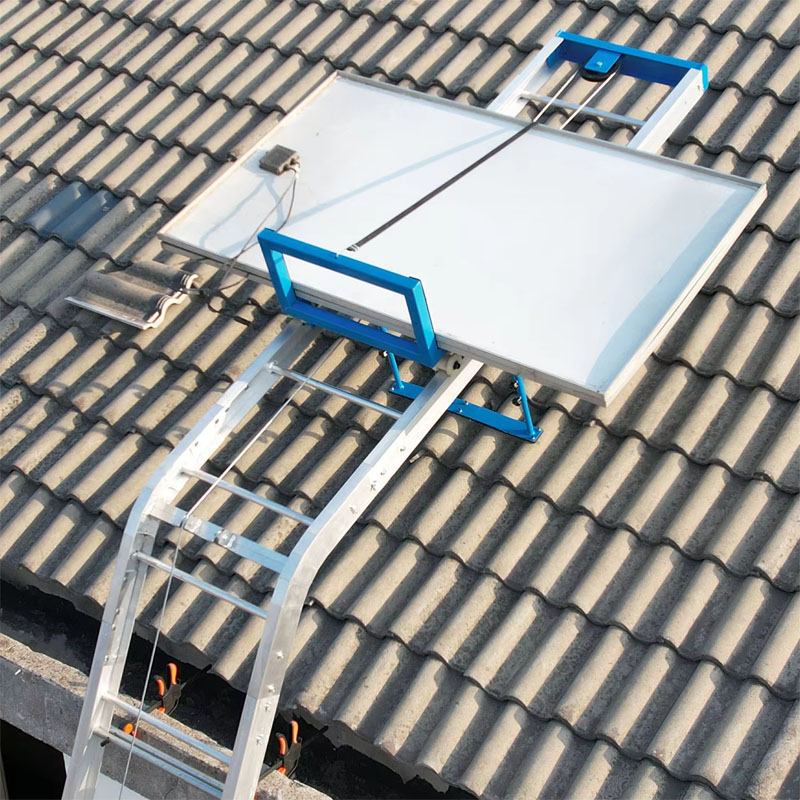

Specially designed for lifting tiles, panels, and roofing materials directly onto rooftops with ease.
High-performance motor and belt-driven system deliver fast, stable, and continuous lifting performance.
The ladder base and angle can be adjusted to fit various roof slopes and building heights.
Built with corrosion-resistant aluminum and steel materials, suitable for outdoor operation under harsh conditions.


Parameters
Brochure
Track length
4-20m
Max. Load Capacity
200kg/150kg
Lifting Speed
12-16m/min
Motor Model
PA800/PA1000/PA1200
Power
1300W/1600W/2000W
Galvanized steel pipe, pipe size
40mm*60mm,thickness1.6mm
Motor Bracket
0.5m
Track Length
Vertical height + 0.5~2 m
