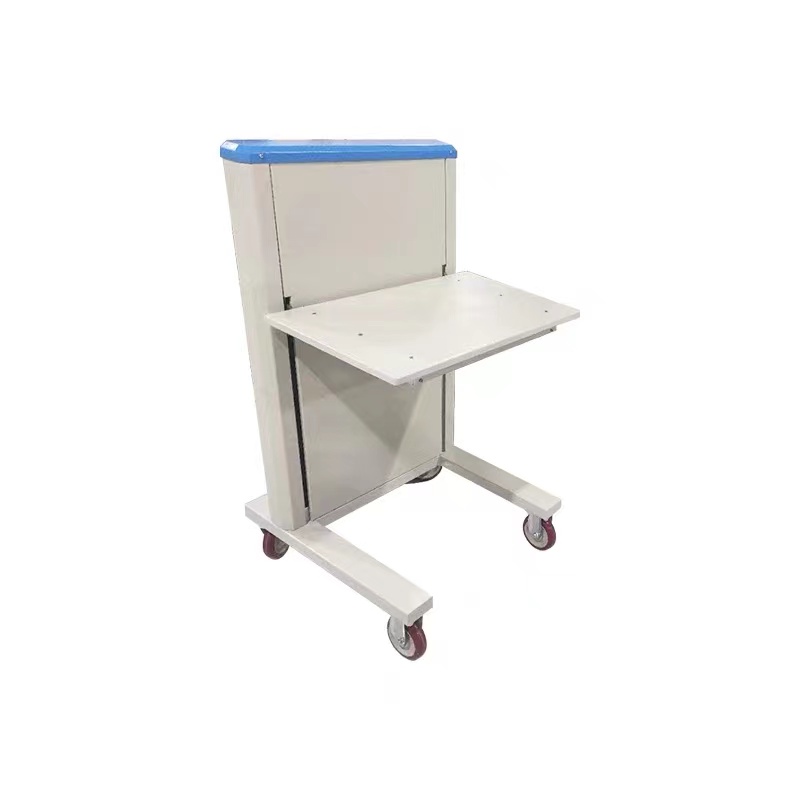

Unpowered Lifting Trolley

Automation Equipment

Material

Steel

Rated Load

50-200kg

Table Length C

425mm

Request a Quote Brochure

Unpowered Lifting Trolley

Features

Parameters

Request a Quote

Brochure

Features

+ Expand All - Collapse All

Spring-Driven Lifting Mechanism

+ -

Uses high-quality springs for smooth, effortless lifting and lowering, offering a reliable solution without the need for external power sources.

Adjustable Height for Versatility

+ -

The lifting platform height can be easily adjusted, providing flexibility to handle different items and tasks with ease.

Easy to Use & Maintenance-Free

+ -

No need for electricity or complex systems; the simple spring mechanism requires minimal maintenance and is easy to operate by hand.

Durable and Stable Construction

+ -

Built with a strong steel frame and durable components, ensuring long-lasting performance even under frequent use and heavy loads.

Parameters

Brochure

Material

Steel

Rated Load

50-200kg

Table Length C

425mm

Table Width D

620mm

Pusher Height F

950mm

Maximum Height B

780mm

Minimum Height A

280mm

Body Height H

1150mm

Body Length E

650mm

Wheel Size

5 inch

Special Wheels

Silent wheels, brake wheels, etc. - -optional

Control

Height varies with the weight of the load
